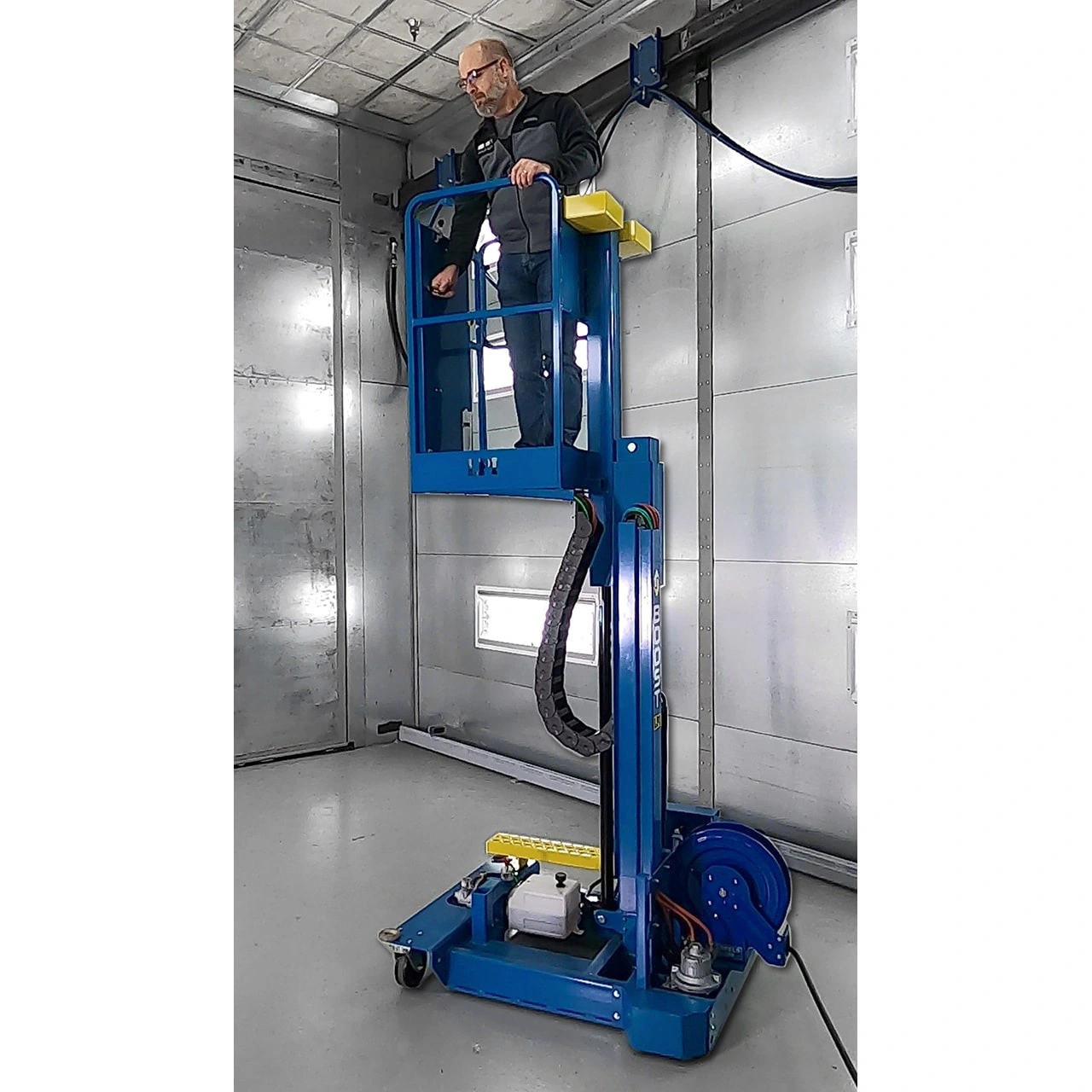

Boost Self-Propelled Pneumatic Lift

Self-propelled Mobile single operator elevating work platform powered by compressed air.

The BOOST Mobile lift is a drivable pneumatic single user lift designed for use in hazardous locations or industrial environments. The BOOST lift provides versatility by allowing the worker to work in an comfortable position to get around the product without leaving the lift. It features zero turn radius with individually controlled drive motors simplify driving and repositioning so the worker can be more productive. The BOOST Mobile lift maintains LPI’s standards for high quality, durable lift products and provides all the necessary features to keep your employees safer, allowing them to be focused on the taks they need to complete.

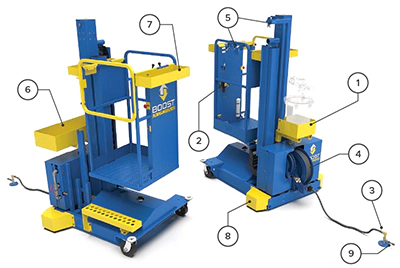

Product Options

Description
1201-7465 Paint Pot Carrier Kit
2202-5263 Auxiliary Air Regulator with Gauge Kit
3204-2272360° Swivel Air Connection Kit
4204-2280 Static Discharge Reel Kit
5204-2281 Paint Gun Hook Kit
6204-2283 Base Mounted Tool Tray Kit
7204-2284 Front Platform Tool Tray Kit
8201-2285 Wide Wheel Drive Kit
9970-0530 Safety Auto-Shutoff Valve

Product Documents

Technical Details

Boost Mobile Lift is designed for operation on flat, level surfaces only
Compressed Air powered Lift (40 scfm @ 90psi compressed air source required)
30 ft. travel distance from air source
Lowered platform height: 24 in.
Raised platform height: 10 ft.
Operator platform: 24 in. x 24 in.
Platform Capacity: 300 lbs.
Approximate total weight: 1,000 lbs.
Lift is manually controlled up/down and left/right travel
Features an Emergency stop and descent platform controls
Emergency descent base control to prevent he operator from being stuck in the raised position
Comes Standard with a Filter/Regulator/Lubricator
