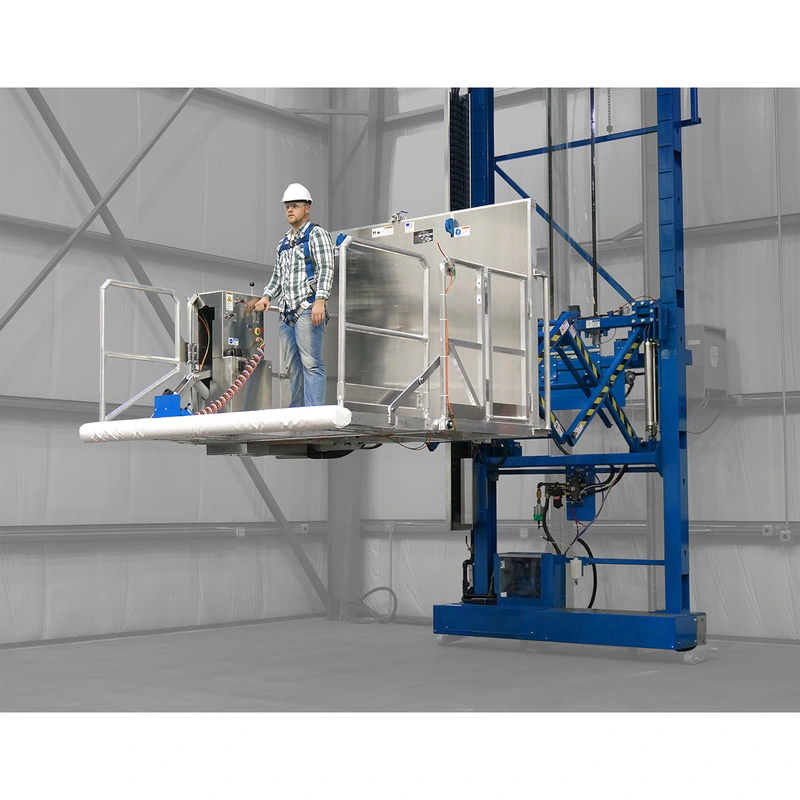

Aerospace Paint Booth Man Lift

Paint Booth man lift designed with custom features for the aerospace industry.

• 3-Axis pneumatic, rail guided personnel lift
• Aluminum Platform is Standard
• Primary Platform Dimensions:  96in. wide x 44 in. deep
• Platform accommodates 2 operators and equipment needed
• Tip-down front railing:  Powered raising and lowering of rail.
• Increased Platform capacity of 750 lbs.
• Designed for maximum access to fuselage sections during prep work and painting operations
• Lift Features a Tip-down front rail allows for extended reach out to 17’-6” from wall of booth
• Safety Contact bumper system shuts down lift movement if triggered
• Features 2 Forms of Control Main platform and pendant controls
• Platform height:  Up to 28ft.-3in.  /  Lowered:  41in.
• Extended reach (from wall):  13ft.-4in. (tip-down raised) & 16ft.-7in. (tip-down lowered)
• X-Axis (left/right) variable speeds Up to 80 ft./min.
• Y-Axis (in/out) non-variable speeds  Up to 13 ft./min.
• Z-Axis (up/down) non variable speeds  Up to 18 ft./min.
• Z-Axis safety latching system to secure lift platform to mast if loss of screw tension is detected at any time.
