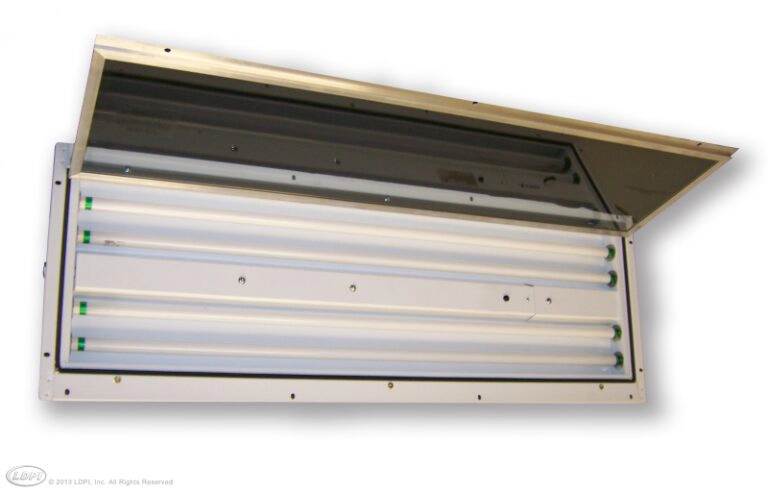

Product Overview
This 4-foot front access lamp fixture is available in 2, 4 or 6-Lamp models.
Uses T5, T5HO, T8 or T8HLO lamps (not included)
. Available in 120, 277, & 347 volts – Multiple voltages available, consult factory
. Available in high light output
. Front / inside access for easy relamping
. Listed for locations having deposits of readily combustible paint residues
. Compact design (2 1/4″ fixture depth) allows for mounting in an insulated panel
. 20 gauge steel construction, coupled with a white baked enamel finish,
creates a durable, highly reflective fixture
. Clear tempered safety glass hinged door panel ensures a durable,
long lasting seal against vapor & dust
. For spray booth applications
. Spring loaded lamp holders to reduce shock and vibration
. Features an Electronic Ballast for greater energy savings
. Panel mount design provides a simple but efficient means of installation
. Features an interlock switch to be wired in such a way as to disable
paint spray equipment when front access door panel is opened
Product Overview
This 4-foot front access lamp fixture is available in 2, 4 or 6-Lamp models.
Available in 32 watt T8
. Available in 120, 277, & 347 volts – Multiple voltages available, consult factory
. Available in high light output
. Front / inside access for easy relamping
. Listed for locations having deposits of readily combustible paint residues
. Compact design (2 1/4″ fixture depth) allows for mounting in an insulated panel
. 20 gauge steel construction, coupled with a white baked enamel finish,
creates a durable, highly reflective fixture
. Clear tempered safety glass hinged door panel ensures a durable,
long lasting seal against vapor & dust

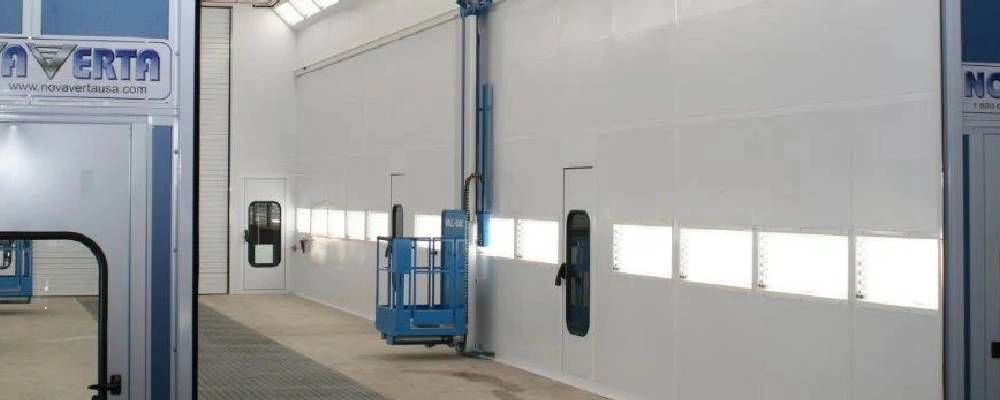

. For spray booth applications
. Spring loaded lamp holders to reduce shock and vibration
. Features a T8 Electronic Ballast for greater energy savings
. Panel mount design provides a simple but efficient means of installation
. Features an interlock switch to be wired in such a way as to disable
paint spray equipment when front access door panel is opened
UL / Class Listings
. Application:Class I Division 2; Class II Division 2; Paint Spray Booth
.ETL listed and Canada listed ETL-C
.Class I, Division 2, Groups A, B, C & D
.Class II, Division 2, Groups F & G
.Meets NFPA-33 requirements for inside access
. Bulbs sold separately
OPTIONS:
All Options Ordered Separately
EM: Emergency Battery Backup Ballast
5902: 8 Ft. 5-wire whip
Corner/Hip Mount #4714 (Available for the 390440J-3546 fixture ONLY)
